Three-roller Bending Machine
Form the outer sheet into ideal shape that can be worked with the subsequent equippments.

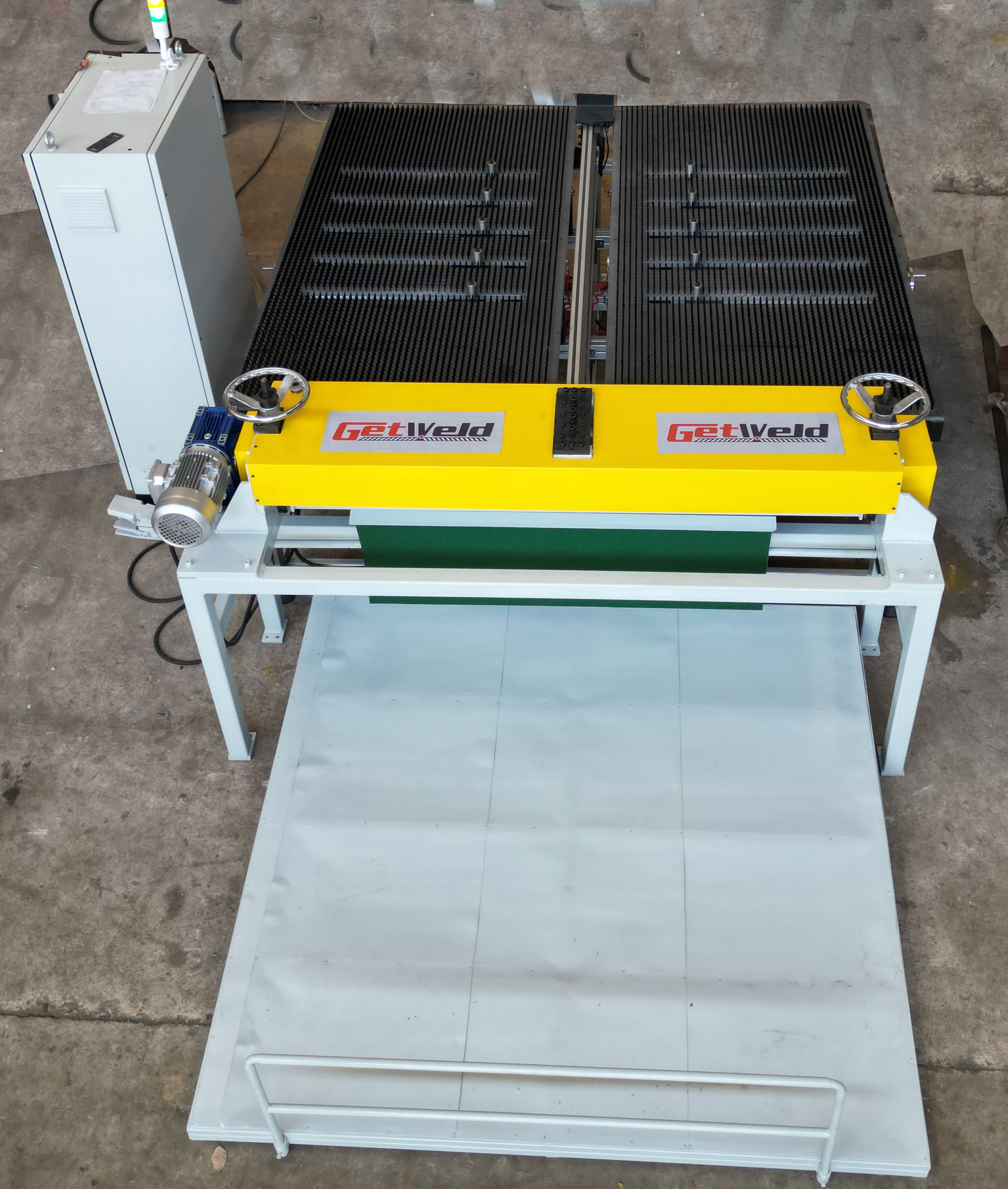

GetWeld Three-roller Bending Machine is Under Trial Running-Manual loading—
Machine is Made for Middle East Customer

Equipment Introduction

The three-roller bending machine is with two loading methods: Auto. loading by manipulator and manual loading.
Three rollers are active transmission mechanism, rounding effect of outer sheet is more ideal

Equipment Technical Parameters

Outer sheet material: SS, GI, Carbon steel or Aluminium
Outer sheet thickness: 0.3-0.8mm
Outer body Dia. range: 250-800mm
Outer body length range: 200-2500mm
Material of roller: 40Cr
The feeding platform is equipped with clamping centering and pushing mechanism
