This machine is designed for cylindrical straight joint applications, without welding. It is with integrated function of bending and lapping.  GetWeld Electric Water Heater Bending and Lapping Machine has highlight advantages, such as high efficiency, strong bonding force, perfect appearance, simple operation, less labor

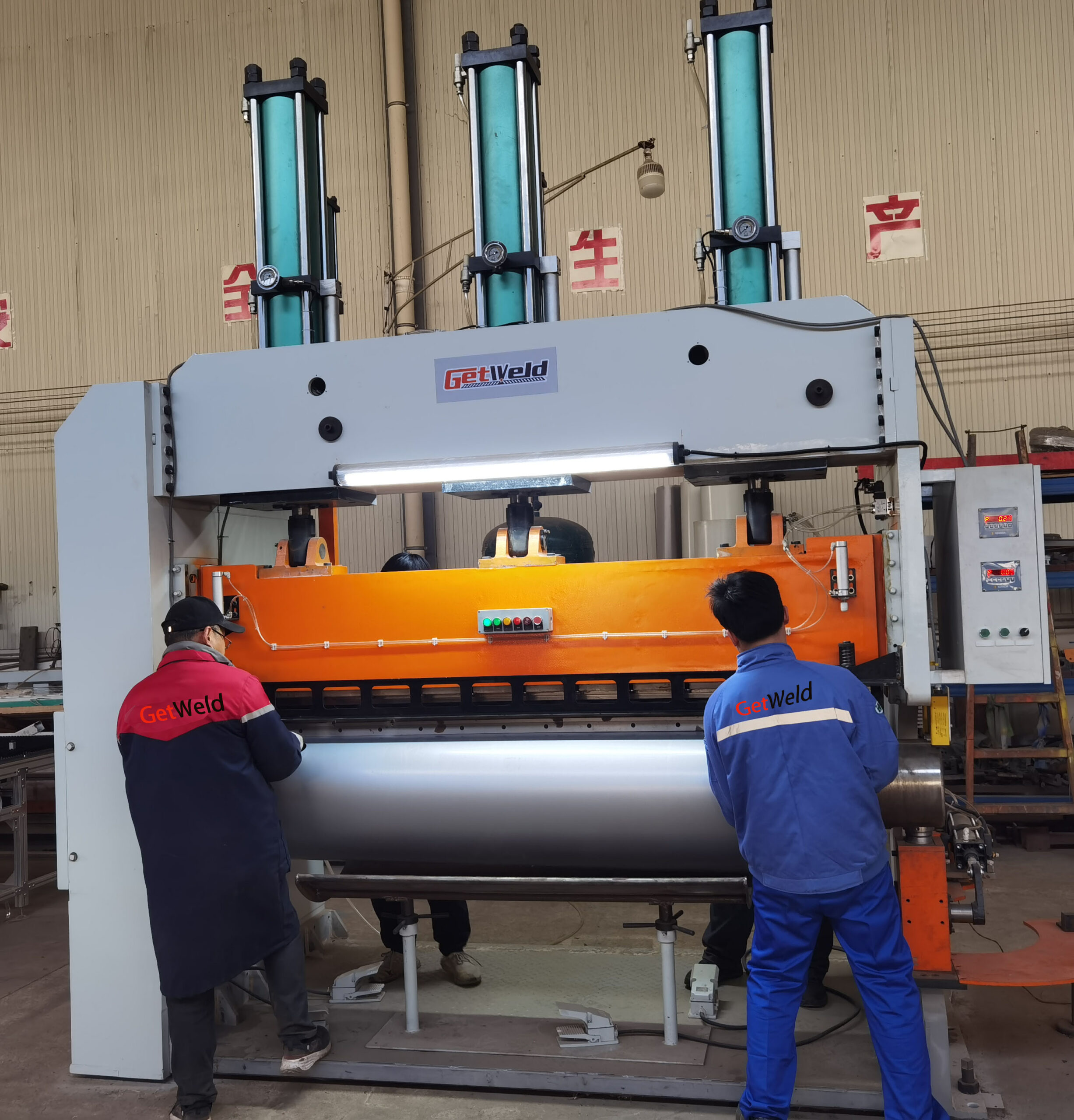

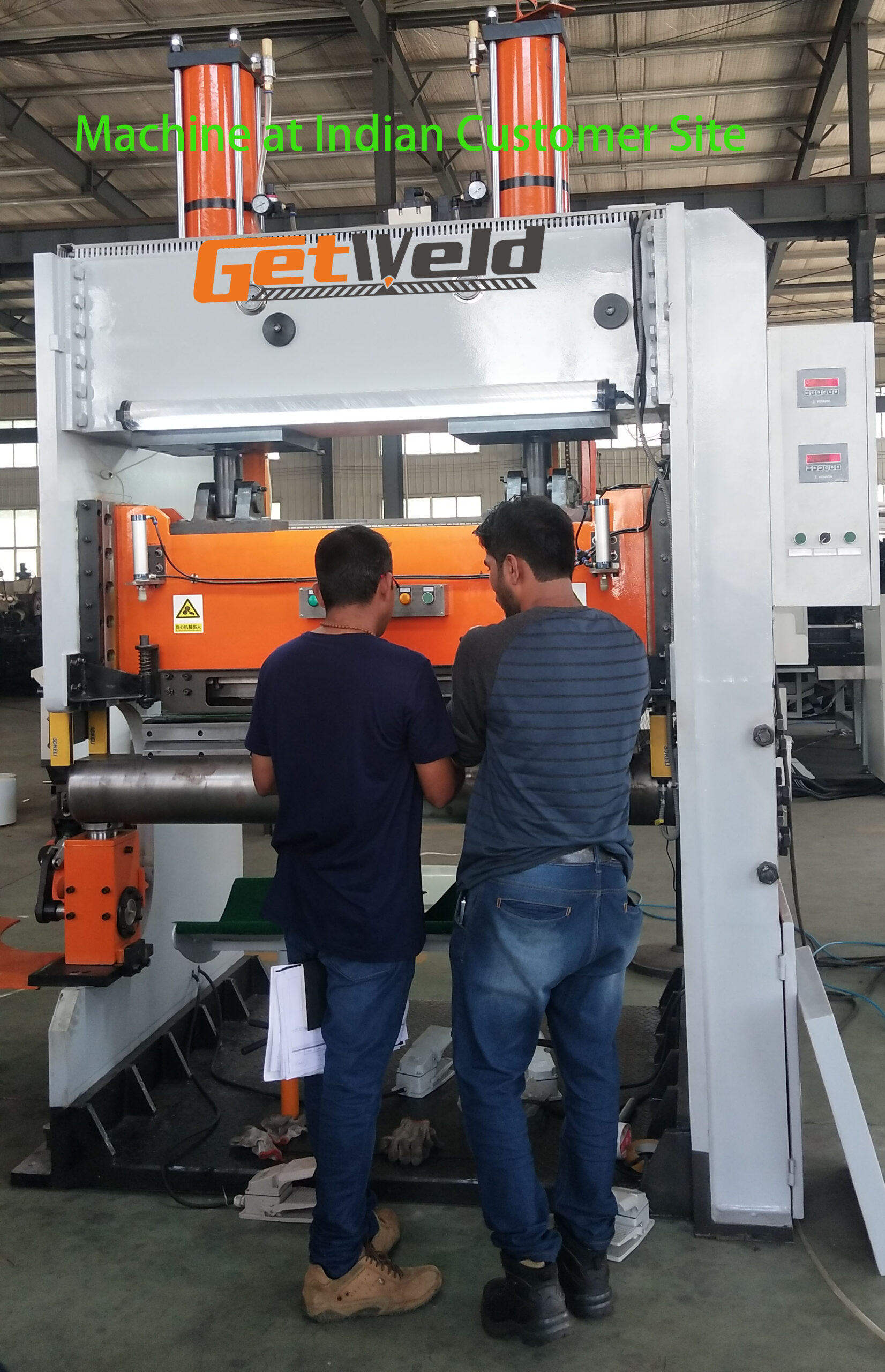

GetWeld Bending and Lapping Integrated Machine is Under Trial Running Machine is made for Indian Customer

Equipment Introduction

GetWeld Bending and Lapping Integrated machine is designed for cylindrical straight joint applications, without welding.
Adopting a motor, flywheel, large and small gears, and a double crank mechanism to drive the slide ram and compound die, the equipment first bends two sides of the outer sheet simultaneously, and then performs seam lapping and joint.

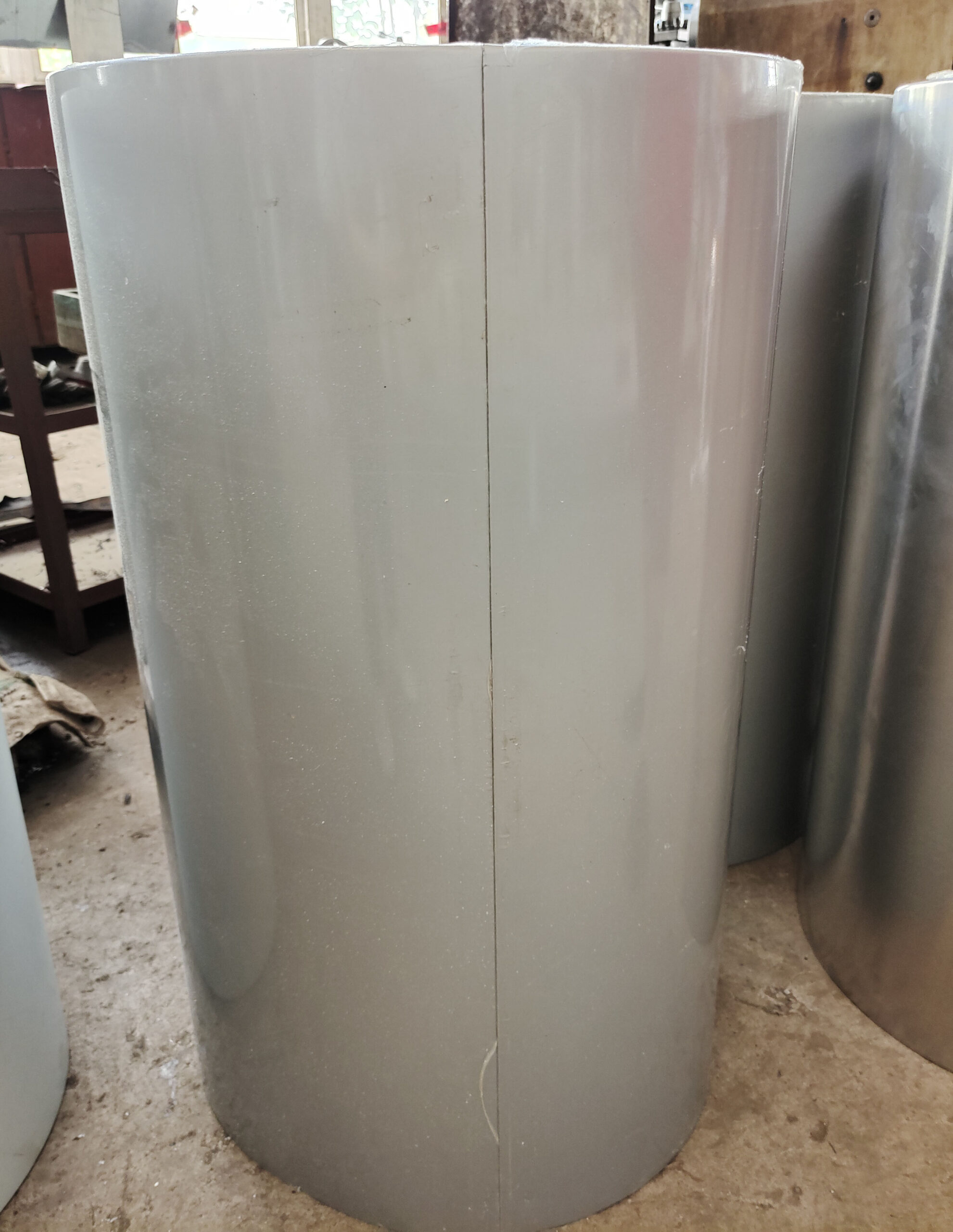

The seam joint is firm and with beautiful appearance.

Equipment Technical Parameters

Outer sheet material:                     SS, GI, Carbon steel or Aluminium
Outer sheet thickness:                   0.3-0.8mm
Outer body Dia. range:                  250-800mm
Outer body length range: :             L≤3000mm
The lower die core beam material: 40Cr material
The die material:                             42CrMo or 9CrSi
Safety grating is equipped for safety purpose
