Turret Press

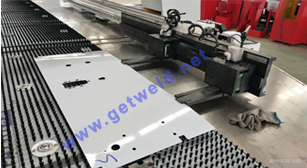

The holes and four corners are punched as per the drawing automatically. Realize the auto. loading and discharging of outer sheet by manipulator. High precision and high productivity

GetWeld Turret Press is Under Trial Running at Indian Customer’s Site

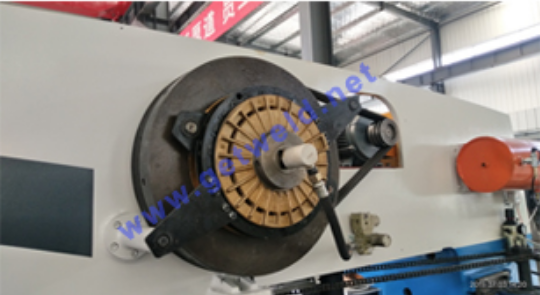

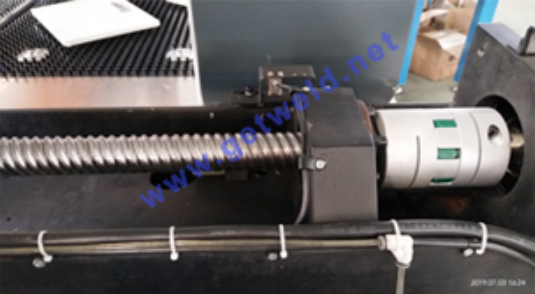

Equipment Introduction

The turret press is equipped with manipulators to achieve auto. loading and discharging of outer sheet.
Loading manipulator, turret press and discharging manipulator are linkage
Holes and four corner are punched as per the drawing.

Equipment Technical Parameters

MACHINE SPECIFICATIONS

Press Capacity:                                                30 T
Frame Construction:                                       O-Frame
Max. Sheet Size (Y axis, with one reposition): 6000 mm
Max. Sheet Size (X axis):                                 1500 mm
Max. Sheet Thickness:                                    4 mm
Max. Hole Diameter:                                      Φ88.9 mm
Stroke:                                                            40 mm
Max. Hit Rate:                                                 240 (30mm pitch) hpm
Max. Feed Rate:                                              80 m/min
Clamps No.:                                                    2 pcs
Re-positioning Cylinder:                                 2 set

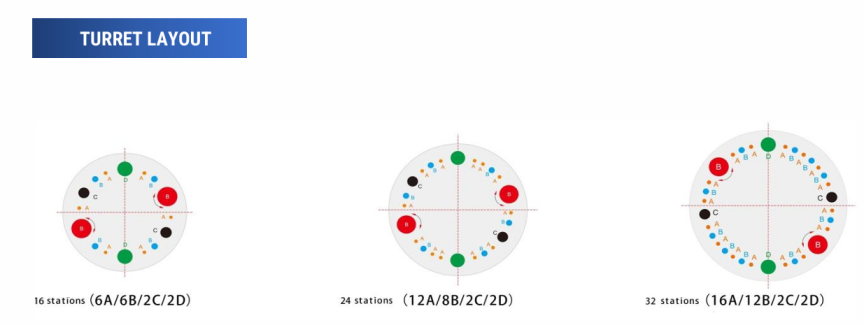

No. of Stations:                                               16 / 24 /32 pcs
Turret Rotating Speed:                                    30 rpm
Turret Positioning:                                           Double cylinder positioning
Air Pressure:                                                    0.6 mpa
Die Form:                                                        Mosaic turret, Long guide tool
Punching Accuracy:                                        ±0.10 mm
No. of Controlling Axis:                                  3(X+Y+T) /4(X+Y+T+C) pcs
Total Power:                                                    14 / 15.5 kw
