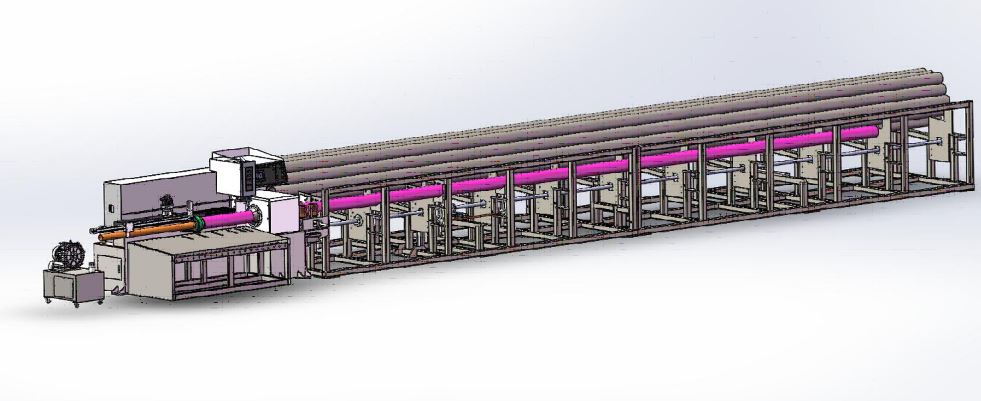

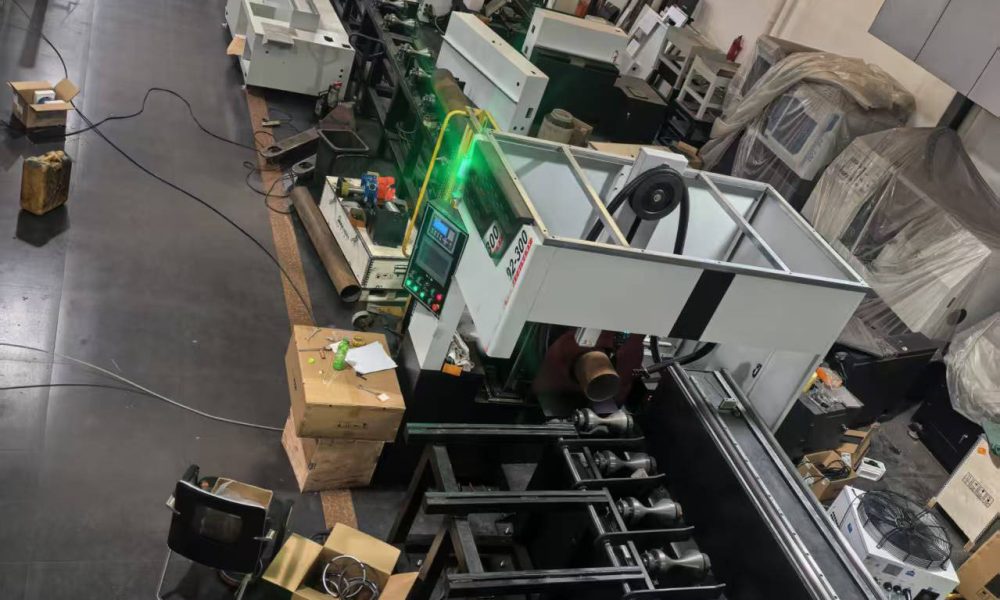

Getweld CNG Cylinder Steel Pipe Laser Pipe Cutter with Auto. Feeding are designed for CNG cylinder raw material seamless steel pipes cutting applications. These machines commonly function to cut seamless pipes with high precision and high speed.
Laser cutting has highlight advantages, such as high cutting speed,automatic feeding and discharging, easily controlled.
Working methods
- Separate, convey and lift the pipes to the waiting area—Automation achievement
- Lift the pipes from waiting area and place it in the roller feeding area—Automation achievement
- Positioning via servo controlled fixed length– Automation achievement
- Feeding roller clamps the pipe and delivers it to the fixed-length position, and then the material receiving mechanism moves upwards.– Automation achievement
- Clamps the pipe, laser head moves downwards, fixed-length mechanism backwards, cut– Automation achievement
- Cycle repeat
General Parameter
Item | Parameters |
Cutting thickness | 3-10mm, take SS seamless pipe 34CrMov for example |
Cutting Dia. | 180-300mm |
Max. cutting speed | <=16m/min. (Depends on the material thickness) |
Normal cutting speed | Dia. 267mm with thickness of 8mm, cutting length-1800:, it takes 42s/pc |
Incision seam width | 0.1-0.5mm |
Raw pipe length | 12m |
Y axis single feeding length | 500-2000mm Length over1500mm, 2time pipe pushing |
Z axis adjustment range | 100mm |
W axis adjustment rage | 360o |
Repeat positioning accuracy | ±0.02mm/1000mm |
Cutting positioning accuracy | ±1mm |
Idle speed | 100m/Min |
Max. acceleration speed | 1.0G |
Power supply | 380V 50Hz |
